How Do You Check a Starter Solenoid

If your car won’t start and all you hear is a click—or worse, nothing at all—you might be dealing with a faulty starter solenoid. The starter solenoid plays a key role in your vehicle’s starting system by engaging the starter motor and connecting it to the battery.

Without it working correctly, your engine won’t crank, no matter how new your battery or how recently your starter was replaced. So, how do you check a starter solenoid when you're stuck with a no-start situation?

First, let's understand what it is, how it works, and what can go wrong.

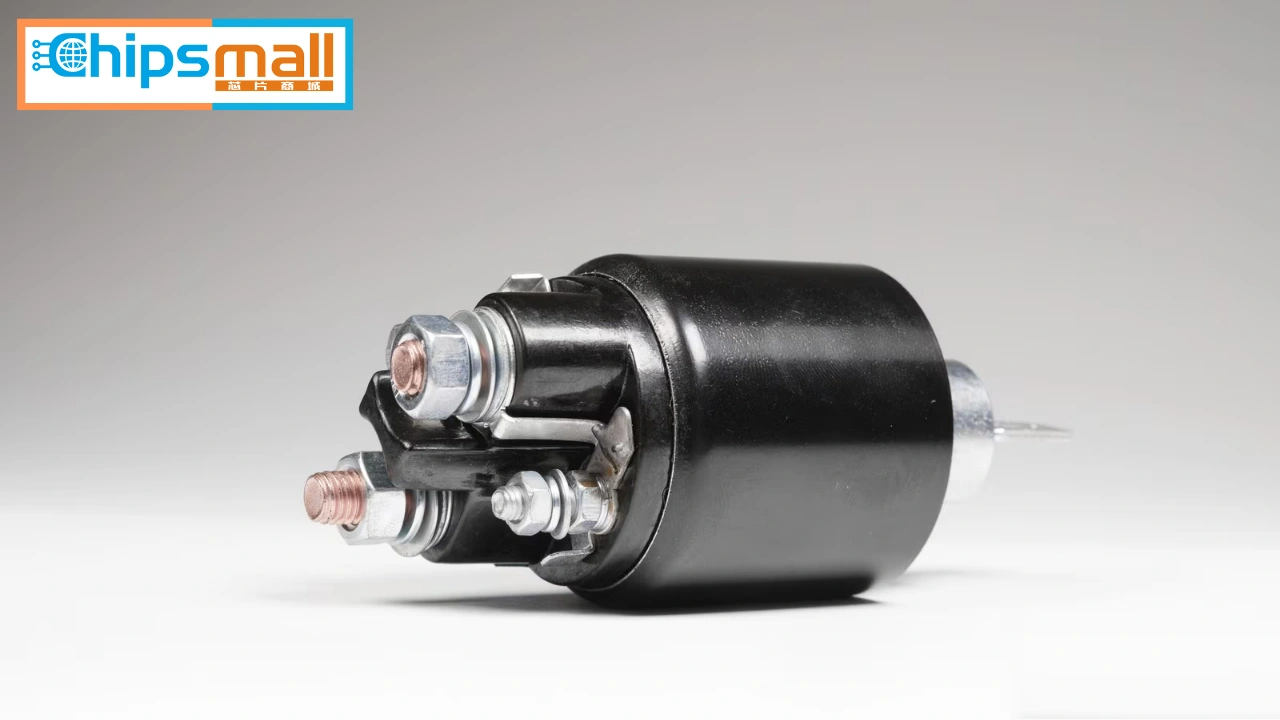

What Is a Starter Solenoid

The starter solenoid is a heavy-duty switch that plays a critical role in starting your vehicle. It’s an electromechanical device that connects the battery to the starter motor. It acts like a bridge, enabling the electrical current to pass from the battery to the motor when you turn the ignition key or press the start button.

On most modern vehicles, the starter solenoid is mounted directly on the starter motor and looks like a small cylindrical unit attached to the motor casing. In older vehicles, you might find it separately mounted on the firewall or fender.

The solenoid isn’t just a simple switch—it also activates a plunger that physically pushes the starter gear into the engine’s flywheel to crank the engine.

How Does a Starter Solenoid Work

Here’s what happens when you start your car:

• Ignition Signal: When you turn the key or press the start button, an electric signal is sent from the ignition switch to the solenoid.

• Magnetic Activation: This signal energizes a coil inside the solenoid, creating a magnetic field.

• Plunger Movement: The magnetic field pulls a plunger that forces the starter pinion gear to mesh with the engine's flywheel.

• Main Circuit Closes: At the same time, the solenoid closes a high-current circuit between the battery and the starter motor.

• Crank & Start: Power flows to the motor, it cranks the engine, and your vehicle starts.

• Disengage: Once the engine starts and you release the key, the solenoid stops receiving power, the magnetic field collapses, and the gear retracts from the flywheel. This entire process happens in less than a second.

What Causes Starter Solenoid Problems

Like any component in your vehicle, the starter solenoid can wear out or fail due to various reasons.

Here are the most common causes:

• Corrosion: Moisture and road debris can cause the solenoid terminals to corrode. Corrosion interferes with electrical conductivity and can prevent the solenoid from functioning properly.

• Worn Contacts: Over time, the metal contacts inside the solenoid can wear down due to arcing (tiny sparks during operation). This reduces its ability to close the circuit and send power to the starter motor.

• Loose or Broken Wires: Vibrations and heat from the engine compartment can loosen wiring or even break internal connections.

• Internal Short Circuit: A short circuit inside the solenoid can cause it to stay engaged even after you’ve released the ignition. This can damage the starter motor and drain your battery.

• Age and Wear: Starter solenoids don’t last forever. High mileage and frequent use can lead to natural wear and eventual failure.

Signs Your Starter Solenoid Needs Replacement

Here are the most common symptoms that indicate a failing or bad starter solenoid:

• No Response When Turning the Key: You turn the key, and nothing happens—no noise, no clicking, no engine crank. This is a strong sign that the solenoid is not transmitting current to the starter motor.

• Single Clicking Sound: If you hear a single click but the engine doesn’t turn over, the solenoid may be receiving a signal but not engaging the starter motor properly.

• Starter Spins Without Engaging: You might hear the starter motor spinning, but the engine doesn’t crank. This usually means the solenoid is failing to push the pinion gear into the flywheel.

• Grinding Noise: A grinding sound during startup can occur when the pinion gear and the flywheel fail to mesh. This could be due to a sticking solenoid.

• Starter Stays Engaged: In rare cases, the solenoid doesn’t disengage after starting the engine. You’ll hear a whining or grinding noise after the engine is running, which can severely damage the starter.

How Do You Test a Starter Solenoid

Test a starter solenoid with a multimeter. As testing a starter solenoid with a multimeter is a straightforward process that helps you determine whether the component is functioning correctly or needs replacement.

We have mentioned a detailed explanation of each step you should take to perform an accurate test.

1. Check Battery Voltage: Before testing the starter solenoid itself, it's essential to ensure your battery is in good condition. Set your multimeter to DC voltage and connect the red probe to the battery’s positive terminal and the black probe to the negative terminal. A healthy, fully charged car battery should read around 12.6 volts. If the voltage is significantly lower, you may be dealing with a battery issue rather than a solenoid problem.

2. Locate and Inspect the Solenoid: Next, you’ll need to physically locate the starter solenoid. In most vehicles, it’s mounted directly on top of the starter motor, which is typically found near the bottom of the engine. Some older models may have the solenoid mounted on the inner fender or firewall. Once located, inspect the solenoid and its connected wires for any signs of corrosion, frayed insulation, loose terminals, or burnt spots. Visual damage can often be an early sign of failure.

3. Measure Input Voltage: To check if power is reaching the solenoid, place the red probe of your multimeter on the solenoid’s input terminal—this is the one connected directly to the positive terminal of the battery. Ground the black probe to a clean, unpainted part of the vehicle’s chassis. If your battery is healthy, you should read a voltage close to 12 volts. A lower reading or no reading at all could indicate a poor connection or broken wire between the battery and the solenoid.

4. Test Coil Resistance: Now, switch your multimeter to measure resistance (ohms). This test checks the condition of the solenoid coil, which generates the magnetic field to engage the starter. Touch one multimeter probe to the “S” terminal—this is the terminal that receives the signal from the ignition switch. Touch the other probe to a good ground on the chassis. A normal reading should fall between 3 to 5 ohms. If your meter shows infinite resistance (open circuit) or zero ohms (short circuit), then the coil inside the solenoid is likely damaged, and the solenoid needs to be replaced.

5. Check Output Voltage During Cranking: To test if the solenoid is properly delivering power to the starter motor, you’ll need a helper to turn the ignition key to the START position while you measure voltage at the output terminal of the solenoid—the one that leads to the starter motor itself. With the red probe on the output terminal and the black probe grounded, the multimeter should show around 12 volts as the key is turned. If there is no voltage during cranking, the solenoid is failing to close the high-current circuit and is likely defective.

6. Listen for the Click: As a final diagnostic step, you can perform a manual activation to check for a clicking sound. With the ignition in the ON position (engine not running), use a jumper wire to briefly connect the “S” terminal to the battery’s positive terminal. This simulates the ignition signal. A functional solenoid will produce a distinct clicking sound, indicating the plunger inside is moving as it should. If you hear no click at all, the solenoid is most likely dead and should be replaced.

Once you’ve confirmed the starter solenoid is the issue, you’ll need a replacement. It’s important to choose a source that offers both quality and compatibility. One option worth considering is Chipsmall, which carries a solid variety of solenoids and other automotive electrical components.

Just be sure to check the specifications carefully—like whether your vehicle uses a 12V or 24V system, the mounting configuration, and the connector type.

FAQs

Q1. What are the main components of a starter solenoid?
A. A typical starter solenoid includes two large terminals—one for the battery and one for the starter motor—and one or two smaller terminals for the ignition switch and, in some cases, the ignition coil or ballast resistor.

Q2. Where is the starter solenoid located?
A. In most modern vehicles, the solenoid is mounted directly on top of the starter motor. In older cars, it may be located separately on the firewall or fender within the engine bay.

Q3. What are common signs of a bad starter solenoid?
A. Key signs include a single clicking noise when turning the ignition, the engine not cranking at all, sporadic starting, or no sound or response when turning the key.

Q4. Can a faulty starter solenoid prevent my car from starting?
A. Yes. If the solenoid doesn’t properly send electrical current to the starter motor, your engine won’t crank—making it impossible to start the vehicle.

Q5. How do you test a starter solenoid?
A. Use a multimeter to check for battery voltage at the terminals, listen for a clicking noise when turning the key, and verify the starter motor receives power when the solenoid is engaged.

Q6. What causes a starter solenoid to fail?
A. Common causes include worn-out internal contacts, corrosion from moisture exposure, overheating due to electrical faults, or mechanical wear from extended use.

Q7. Is the starter solenoid the same as the starter relay?
A. Not quite. While both serve a switching function, the solenoid handles high current and often physically engages the starter gear, while the relay is typically a separate low-current switch in the ignition circuit.

Q8. Can I replace just the solenoid, or do I need a new starter motor?
A. On older vehicles, the solenoid is usually separate and replaceable. In newer cars, it’s integrated into the starter motor, meaning the whole assembly often needs to be replaced.

Q9. How much does it cost to replace a starter solenoid?
A. A standalone solenoid generally costs under $50, while a full starter motor assembly (including the solenoid) can range from $100 to over $450, depending on your vehicle make and model.

Q10. What should I check before replacing a starter solenoid?
A. Before jumping to replacement, verify that your battery is fully charged, check all connections for corrosion or looseness, and run diagnostic tests using a multimeter.

Final Thoughts

Now you know what a starter solenoid is, what can go wrong with it, and how to test it yourself. It’s a small part, but it has a big job—helping your car start. The good news? You don’t need fancy tools or a mechanic’s skills to check it. Just a multimeter and a little time. If it turns out the solenoid is the problem, replacing it is usually pretty easy. And if you’re not sure what to do next, it’s always okay to ask a mechanic.

Hope this helps—and happy driving!
